Optima 25 SC25A 8025-160 Battery

Ships FREE to 48 states only.
Contact us for a shipping quote for other US states and territories

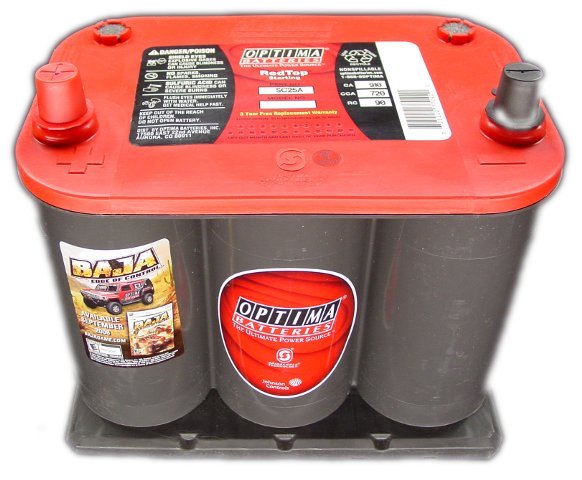

(Click to enlarge)

Model# 25 SC25A 8025-160

Description

        The OPTIMA Red Top high-performance AGM battery is the ultimate high-CCA starting battery designed to deliver the strongest 5-second ignition power for a reliable start-up every time. The Red Top will outperform and outlast traditional batteries in demanding cranking/starting applications. With unparalleled high power delivery and extreme resistance to the most common causes of battery failure, the Red Top is ideal for trucks, SUV's, luxury cars, hot rods, off-road vehicles and other applications that require a leak-proof starting-only battery.

Not sure which battery fits your vehicle?
Battery Selector Guide from Optima

UPS Transit Times

Highlights

Work Directly with us for warranty replacements Fresh Batteries Stocked each week ALL Brand New FREE Shipping Well protected during shipping

Battery Specifications

Part#	8025-160
Model#'s	SC25A 25
Connections:	Top SAE / BCI automotive posts only.
Length:	9.313"
Width:	6.813"
Height:	7.625" (height at the top of the terminals)
Weight:	33.1 lbs.
CCA:	720 Amps
MCA:	910 Amps
RC:	90 Minutes
Data Sheet:	Optima 25 Data Sheet

Charging Information

It is recommended to fully charge the battery before using it for the first time.

Alternator:	13.3 to 15.0 volts; no amperage limit
Battery Charger:	13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approximate
Float Charge:	13.2 to 13.8 volts; 1 amp maximum current (indefinite time at lower voltages)
Rapid Recharge:	Maximum voltage 15.6 volts. No current limit as long as battery temperature remains below 125°F (51.7°C ) Charge until current drops below 1 amp

Warranty Information

Optima Batteries have THE best warranty in the industry. Below is the warranty time period for most applications. To see the full description of the warranty with all the details including for commercial use, please check the Optima Warranty Page

We ensure our batteries get to your door safe and sound by professionally packaging them during shipping. Here is an example of how we package our batteries.

(Click to enlarge.)
