Optima D34/78 SC34DU 8014-045 Battery


Ships FREE to 48 states only.
Contact us for a shipping quote for other US states and territories


(Click to enlarge)

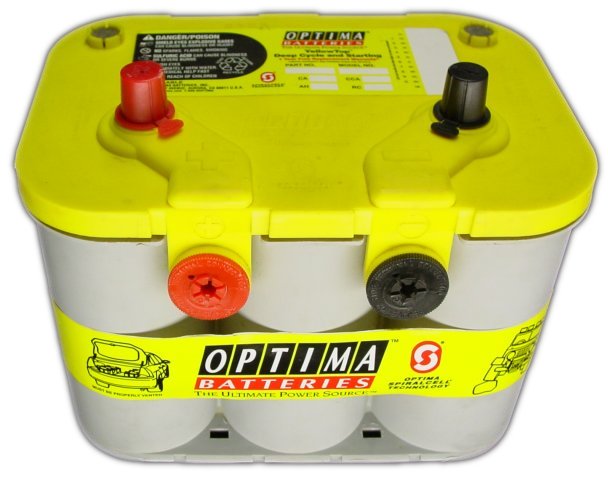

Model# D34/78 SC34DU 8014-045

        The Yellow Top high-performance AGM battery is one of the only true dual-purpose automotive batteries available. With premium cranking power and unparalleled cycling capability (recharge-ability), it is perfect for modern accessory-loaded vehicles. The Yellow Top can repeatedly bounce back from deep power drains to full energy capacity, so it can power plenty of electronics and still start you up time after time. Lower internal resistance also provides more consistent power output and faster recharges.

        Trucks with winches, vehicles with multiple electronics, cars with high-demand audio systems, commercial vehicles and heavy equipment all rely on this battery to provide ultimate starting and deep cycle power.

Which battery do I need? Battery Selector Guide from Optima

• Work with us directly for warranty issues


• We stock Fresh Batteries each week


• Brand New


• FREE Shipping


• Well protected during shipping!

Battery Specifications

Part#	8014-045
Model#'s	SC34DU D34/78
Connections:	Top SAE / BCI automotive posts & GM style side terminals (3/8" - 16 UNC threaded nut).
Length:	10"
Width:	6.875"
Height:	7.813" (height at the top of the terminals)
Weight:	43.5 lbs.
CCA:	750 Amps
MCA:	870 Amps
RC:	120 Minutes

Recommended Charging Information
It is recommended to fully charge the battery before using it for the first time.

Alternator:	13.65 to 15.0 volts; no amperage limit
Battery Charger:	13.8 to 15.0 volts; 10 amps maximum; 6-12 hours approximate
Float Charge:	13.2 to 13.8 volts; 1 amp maximum current (indefinite time at lower voltages)
Rapid Recharge:	Maximum voltage 15.6 volts. No current limit as long as battery temperature remains below 125°F (51.7°C ) Charge until current drops below 1 amp

You can see the full data sheet from Optima about this battery by clicking the following pdf file.
Optima D34/78 Data Sheet

Optima has THE best warranty in the industry. Below is the warranty time period for most applications. To see the full description of the warranty with all the details including for commercial use, please check the Optima Warranty Page

We ensure our batteries get to your door safe and sound by professionally packaging them during shipping. Here is an example of how we package our batteries.

(Click to enlarge.)
